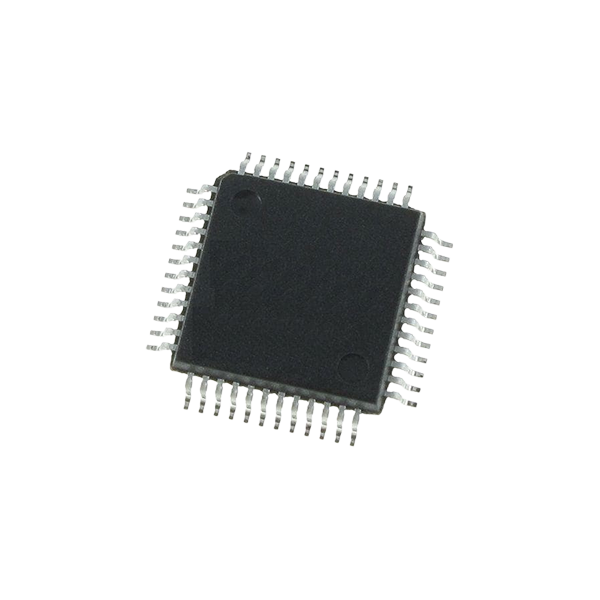

STM32G030C8T6 – Mainstream Value-Line ARM Cortex-M0+ MCU – STMicroelectronics

Key features:

  • Core Architecture: 32-bit ARM Cortex-M0+
  • Maximum Frequency: 64 MHz
  • Operating Voltage: 2.0V – 3.6V
  • Package: LQFP-48 (7×7 mm)
  • GPIO Pins: 44
  • Operating Temperature: Industrial grade -40°C to 85°C
  • Product Series: STM32G0 Value Line



Get a Quote
Categories: , Brand:

The STM32G030C8T6 is a mainstream value-line 32-bit microcontroller from STMicroelectronics based on the ARM Cortex-M0+ core. It belongs to the STM32G0 series, which is designed as an optimal balance between performance, cost, and power efficiency for entry-level embedded applications.

The device features a 64 MHz ARM Cortex-M0+ CPU providing efficient instruction execution for cost-sensitive embedded systems. It integrates 64 KB Flash memory with protection features and 8 KB SRAM with hardware parity checking for fail-critical applications.

Key advantages include a comprehensive set of low-power modes (Sleep, Stop, Standby) that enable battery-powered applications with standby current as low as 2 µA. The device supports VBAT supply to keep the RTC and backup registers powered when main power is off.

The LQFP-48 package provides 44 fast I/O pins, all mappable on external interrupt vectors, with multiple 5V-tolerant I/Os for direct interfacing with 5V logic. The device supports Serial Wire Debug (SWD) for programming and debugging using only 2 pins.

The STM32G030C8T6 is fully supported by ST’s ecosystem including STM32CubeMX, STM32CubeIDE, HAL libraries, and major third-party toolchains (Keil MDK, IAR Embedded Workbench), simplifying development from prototyping to production

Parameters

Parameters Specifications
Manufacturer STMicroelectronics
Part Number STM32G030C8T6
Core Architecture ARM Cortex-M0+ 32-bit RISC
Max Frequency 64 MHz
Flash Memory 64 KB
SRAM 8 KB (with hardware parity check)
Supply Voltage (VDD) 2.0V to 3.6V
GPIO Pins 44 (LQFP-48)
ADC 12-bit, 0.4 µs (2.5 MSPS), up to 19 channels
Timers 8 timers: 1 advanced motor control PWM,
4x 16-bit general-purpose, 2x watchdogs, SysTick
DMA Channels 5-channel DMA controller
Communication Interfaces 2x I2C, 2x USART, 2x SPI (1x I2S multiplexed)
RTC Calendar RTC with alarm and wakeup
CRC Unit Yes
Debug Interface Serial Wire Debug (SWD)
Operating Temperature -40°C to +85°C (Industrial)
Package Type LQFP-48 (7×7 mm)
Mounting Surface Mount
RoHS Status ECOPACK®2 compliant

Applications

  • Industrial automation – PLC systems, motor control, factory automation, sensor networks

  • Consumer electronics – Smart home devices, wearables, gaming peripherals

  • IoT devices – Smart sensors, IoT gateways, environmental monitoring, edge computing nodes

  • Healthcare & medical devices – Portable patient monitors, handheld diagnostic equipment

  • Building automation – HVAC control, alarm systems, video intercoms

  • Smart agriculture – Environmental monitoring, automated irrigation systems

  • Power management – Battery management systems, portable instrumentation

  • Robotics – Motor control, autonomous systems

  • PC peripherals – Keyboards, mice, printers, scanners

  • Automotive electronics – Aftermarket ECUs, vehicle communication systems (within temperature rating)

Note: The STM32G030C8T6 is an active, in-production device from STMicroelectronics. For new designs, this device offers improved power efficiency and lower cost compared to older STM32F0 series equivalents. For surface-mount automated assembly, tape & reel packaging options are available.
